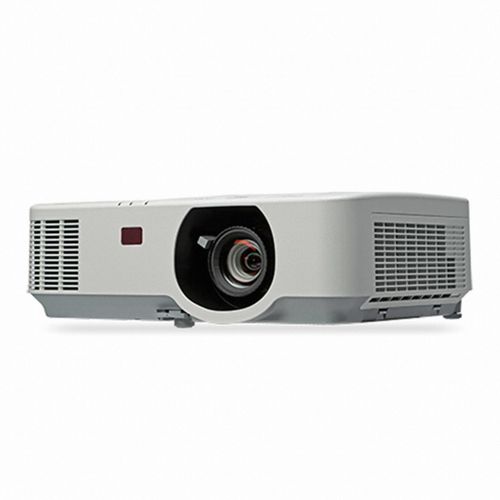

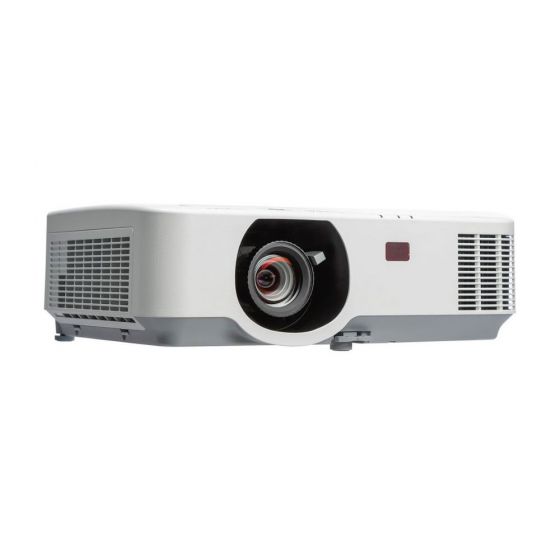

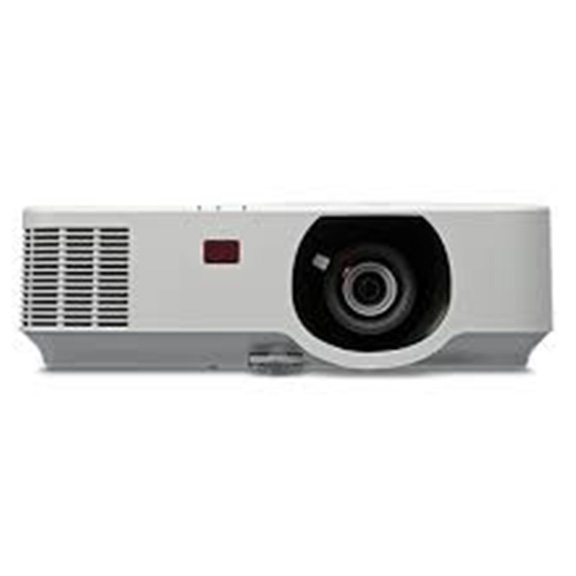

NEC PE523X
Original price was: ฿65,000.฿49,000Current price is: ฿49,000.
- ความสว่าง(ANSI Lumens) : 5,200
- ความละเอียด(พิกเซล): 1024×768( XGA)
- Contrast: 18,000:1
- Big Lens Zoom 1.7x
- Horizontal & Vertical lens shift
- Dual HDMI inputs (with HDCP)
- Built-in HDBaseT
- การรับประกัน ตัวเครื่อง 2 ปี หลอดภาพ 1 ปี หรือ 1,000 ชม
**ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
มีสินค้าพร้อมส่ง
Description
| Model | NP-PE523X | |||
|---|---|---|---|---|
| Method | Three primary colour liquid crystal shutter projection | |||
| Specifications of main parts | ||||
| Liquid crystal panel | Size | 0.63″ (with MLA) × 3 (aspect ratio: 4:3) | ||
| Pixels*1 | 786,432 (1,024 dots × 768 lines) | |||
| Projection lenses | Zoom | Manual (zoom ratio 1.7) | ||
| Focus | Manual | |||
| Throw ratio | 1.3 – 2.2 | |||
| F-number Focus length | F = 1.7 to 2.2 f = 17.4 to 29.0 mm | |||
| Lens shifting | Manual (V = 0 – 50% / H = ±15%) | |||
| Lamp wattage*2 | 305 W AC | |||
| Light source (Lamp) life*3 | ECO mode OFF | 4,000 H | ||
| Normal ECO mode | 6,000 H | |||
| ECO mode | 8,000 H | |||
| Light output*4 *5 | ECO mode OFF | 5,200 lumens | ||
| Normal ECO mode | Approx. 86% | |||
| ECO mode | Approx. 65% | |||
| Centre lumen (ECO mode OFF)*6 | 5,500 lumens | |||
| Contrast ratio*4 *5(all white / all black) | 18,000 : 1 with Iris & LAMP Power |
|||
| Screen size (throw distance) (Performance guarantee range) |
30″ to 300″ (40″ to 200″) |
|||
| Colour reproducibility | 10-bit colour processing (approx. 1.07 billion colours) | |||
| Quietness (ECO / Normal ECO / ECO mode off) | 34 dB / 34 dB / 37 dB | |||
| Synchronization rate | Horizontal | 15 kHz to 100 kHz (24 kHz or greater for RGB inputs) | ||
| Vertical | 50 to 120 Hz (HDMI: 50 Hz to 85 Hz) | |||
| Maximum resolution (horizontal × vertical) | Up to WUXGA (1,920 × 1,200) with Advanced AccuBlend | |||
| Keystone Correction | Horizontal | Manual, Approx. ± 20 Max degrees | ||
| Vertical | Manual, Approx. ± 30 Max degrees | |||

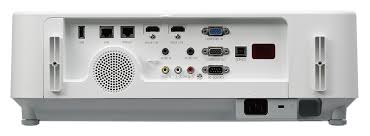

| Input / output connectors | ||||
| Computer / Component | Input | Mini D-Sub 15-pin × 1 | ||
| Output | Mini D-Sub 15-pin × 1 | |||
| Audio input | Stereo mini jack × 1 | |||
| Audio output | Stereo mini jack × 1 | |||
| HDMI | Video input | Type A HDMI connector 19-pin × 2, Support HDCP*7 | ||
| Audio input | Yes | |||
| HDBaseT | Video input | Non-support | ||
| Audio input | ||||
| Video | input | RCA × 1 | ||
| Audio input | RCA × 2 (L/R) | |||
| Wired LAN Port | RJ-45 (100Base-TX / 10Base-T) × 1 (Control support only) |
|||
| Wireless LAN Port (Optional) | IEEE 802.11 b/g/n (optional USB Wireless LAN Unit required) (Control support only) |
|||
| PC control connector | D-Sub 9-pin × 1 | |||
| USB port | Type A for USB memory and for supply of power (5V / 2A) to the MultiPresenter Stick × 1, Type B for service × 1 |
|||
| Built-In Speaker | 20 W monaural × 1 | |||
| Usage environment | Operating temperature: 5 to 40°C, Operating humidity: 20 to 80 % (with no condensation) (ECO mode selected automatically at / 35°C to 40°C) |
|||
| Storage temperature: -10 to 50°C, Storage humidity: 20 to 80 % (with no condensation) |
||||
| Operating altitude: 0 to 2,700 m (1,700 to 2,700 m: Set [FAN MODE] to [HIGH ALUTITUDE]) |
||||
| Power supply | 100 – 240 V AC, 50 / 60 Hz | |||
| Power consumption | ECO mode OFF | 410 W (100 – 130 V) | ||
| 388 W (200 – 240 V) | ||||
| Normal ECO mode | 347 W (100 – 130 V) | |||
| 334 W (200 – 240 V) | ||||
| ECO mode | 273 W (100 – 130 V) | |||
| 258 W (200 – 240 V) | ||||
| STANDBY (NETWORK)*8 |
2.0 W (100 – 130 V) | |||
| 2.0 W (200 – 240 V) | ||||
| STANDBY (NORMAL) |
0.16 W (100 – 130 V) | |||
| 0.2 W (200 – 240 V) | ||||
| Rated input current | 4.7 A*9 – 1.8 A*10 | |||
| Dimensions (W × H × D) | 420 × 133 × 322 mm (Net dimensions, not including protruding parts), 478 × 233 × 390 mm (Gross dimensions) |
|||
| Weight | 4.7 kg, 6.4 kg (Gross weight) | |||
- Effective pixels are more than 99.99 %.
- *2:Wattage when ECO mode is OFF.
- *3:Time at which the light source is at half brightness; not a guarantee time.
- *4:This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. In other modes, the light output value may drop slightly.
- *5:Compliant with ISO21118-2012
- *6:Measured at center area of projector screen.
- *7:If you are unable to view material via the HDMI input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision or intention of the HDCP community. (Digital Content Protection, LLC). Video: Deep Colour; 8/10/12-bit, LipSync Audio: LPCM; up to 2 ch, sample rate 32/44.1/48 KHz, sample bit; 16/20/24-bit
- *8:Internal measured value. All wired network ports are connected and active.
- *9:100 V – 130 V AC
- *10:200 V – 240 V AC
